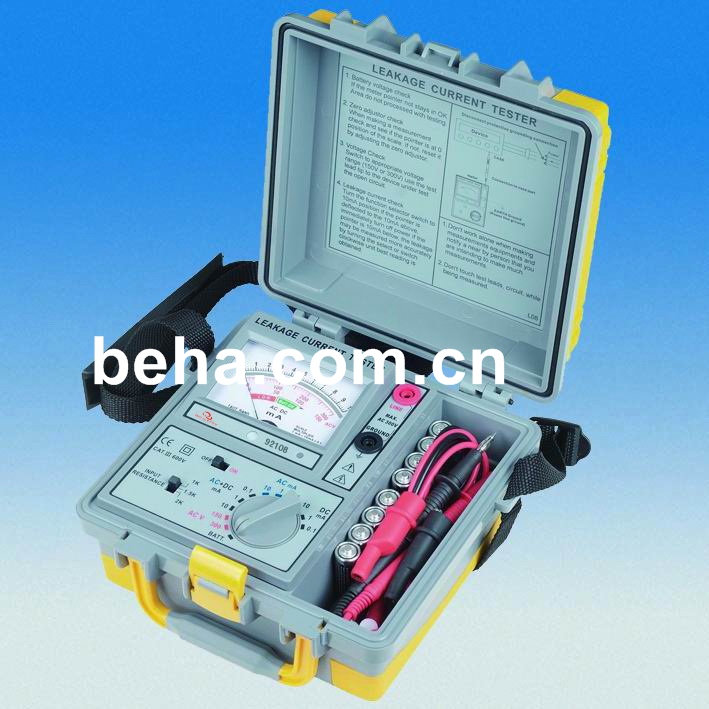

92108 Leakage Current Meter

Model:92108

● The 92108 is a handy universal tester for checking electrical appliances.
● Appliance leakage current measurement
● Four functions : DC current, AC current, AC+DC current and ACV measurement.

Details

Download Data Sheet

AC/DC Leakage Current Meter

Model:92108

The 92108 is a handy universal tester for checking electrical appliances.
It's used for:
Motor operated appliances : washing machine, electrical pump, lawn mower, refrigerator, electric drill, electric fan, vending machine.
Electrothermal appliances : toaster, electric stove, electric curling iron, hair dryer.
Electronic appliances : projector, duplicator and photographic enlarger.
Other appliances : portable generator, burglar alarm, medical and dental equipment.

Features:
● High quality Taut Band movement.
● Four functions : DC current, AC current, AC+DC current and ACV measurement.
● Three input resistance ranges : 1KΩ, 1.5KΩ and 2KΩ.
● 200uA full scale value.
● ±2.5% full scale value accuracy.
● Built-in overload protection circuit.
● Robust, compact and easy to carry.
● Meets : IEC/EN61010-1 CAT. III 600V, EN61326-1

Technical Data:

Range
*DC Current*	0.1-1-10 mA
*AC Current*	0.1-1-10 mA
*AC+DC Current*	0.1-1-10 mA
*AC Voltage*	150 - 300V (50/60 Hz)
Accuracy	±2.5% of full scale value
Input Impedance
Current Ranges	1KΩ, 1.5KΩ and 2KΩ
Voltage Ranges	150V/500KΩ, 300V/1MΩ
Working Frequency	20Hz ~ 5kHz
Overload Protection	With stands 30mA AC for 10 minutes for each current measuring rang
Operating Temperature	0°C ~ 50°C
Operating Humidity	Max. 80% R.H.
Power supply	8 x 1.5V, IEC LR6
Dimensions	210 x 210 x 100 mm
Weight Approx.	1.4kg (battery included)

Scope of Supply:

1 pc AC/DC Leakage Meter 92108

8 pc Battery 1.5V, type IEC LR6

2 pc Test Leads (red/black)

1 pc Instruction Manual
