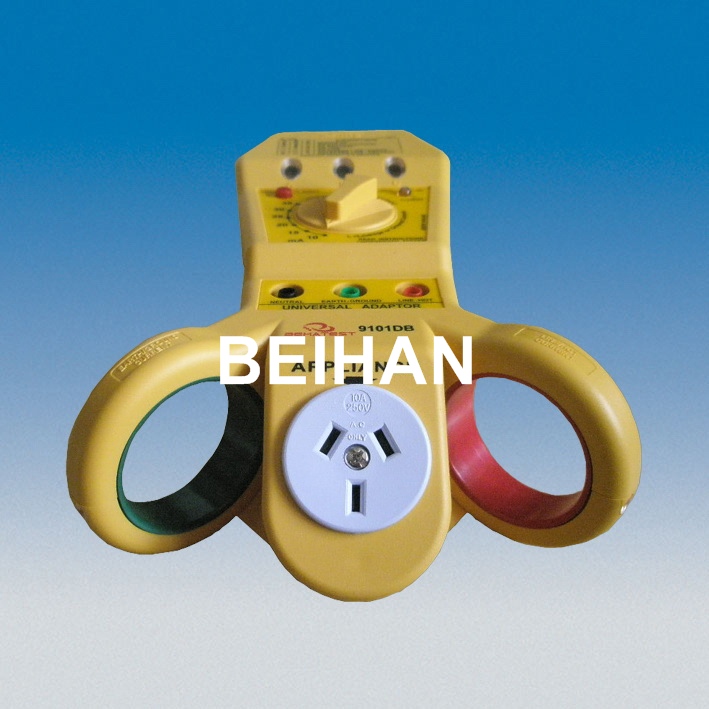

9101DB Multi-Purpose RCD and Appliance Tester

Model:
Price:0US$

9101DB Multi-Purpose RCD and Appliance Tester
• Mains wiring polarity check.
• ELCB/RCD testing.
• Measuring ear for line current.
• Measuring ear for leakage current.
• Helps calculate insulation resistance.
• Helps calculate power consumption.
• Helps fault finding of standing earth fault.
• Fused main adapter.
• Appliance testing (with the ad of a clamp meter).
 Details



Multi-Purpose RCD and Appliance Tester

Model: 9101DB

Features:
• Mains wiring polarity check.
• ELCB/RCD testing.
• Measuring ear for line current.
• Measuring ear for leakage current.
• Helps calculate insulation resistance.
• Helps calculate power consumption.
• Helps fault finding of standing earth fault.
• Fused main adapter.
• Appliance testing (with the ad of a clamp meter).
• Fused appliance socket.
• No batteries required.
• HRC fuse inside.
• Fused, color-coded universal test sockets.
• Universal mains IED Lead.

Specifications:
Voltage / Power Input
Universal IEC LEAD 240V/10A
Dimensions
223(L)x152(W)x67(D)mm
Weight
Approx. 318g
Accessories (to use appliance test feature)
Leakage clamp
Wiring Polarity Check
Nominal Voltage
Frequency
Mains Voltage Tolerance
220-240Vac
50/60Hz
±10%
ELCB / RCD Tester
Nominal Voltage
Frequency
Current Tolerance
220-240Vac
50/60Hz
Proportional
(current proportional to Line to Earth Voltage)
Universal Test Sockets/ Appliance Tester
Nominal Voltage
Frequency
Mains Voltage Tolerance
Fused
220-240Vac
50/60Hz
±10%
10A
Appliance Line Current Coil/ Appliance Earth Current Coil
Line Current Fused
Type
Measured by
current clamp


Scope of Supply:
1 pc 9101DB
1 pc Test lead with Schuko plug system
3 pc Crocodile clamps Test lead with safety plug
1 pc Instruction Manual
