92720 BEHATEST Earth Resistance Tester

Model:92720
Price:0US$

● 2, 3-wire measurements earth resistance
● Capable of measuring earth voltage (Vac).
● Data hold function.
● Timer for test function(count 3-5 minutes).
 Details




2, 3-Wire Earth Resistance Tester

Model: 92720

Introduction:
The 92720 is a "professional instrument".

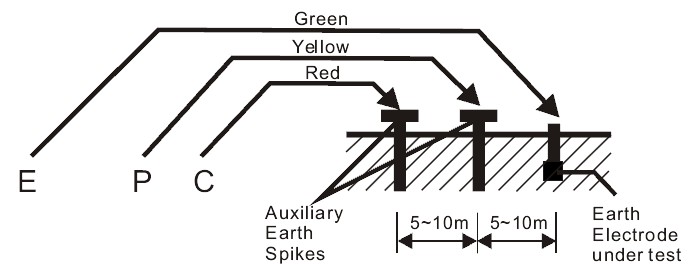

The instrument is suitable for the testing of single earth electrodes such as lightning conductors and other small earthing system.
The resistance of conductors such as continuity and conduit coupling joints can also be measured.
Two-terminal operation measurement, which reduces the accuracy, can also be done by shorting P and C terminals .
Earth resistance can be Measurement directly from 0.01 Ω up to 1999 Ω.
The reading is displayed on a large, easy-to-read digital display.

Features:
● 2, 3-wire measurements earth resistance
● Capable of measuring earth voltage (Vac).
● 2mA measuring current permits the testing of earth resistance without tripping earth leakage current circuit breakers in the circuit.
● The leads are supplied as standard accessories for simplified two-wire measuring system.
● Data hold function.
● Battery operated.
● Battery test indicator.
● Timer for test function(count 3-5 minutes).
● Standard accessories for 3T and 2T.
● Designed to met IEC/ EN 61010-1, EN 61557-1, EN 61557-5. EN 61326-1. CAT III 200V.
● Calibration performed with supplied test leads.

Technical Data:

Display
3 1/2 digit (1999 counts)
Earth Resistance
0-20 /0-200 /0-2000Ω
Resolution
0.01/0.1/1Ω
Accuracy
±(2%rdg+2dgt)
Test current
2mA/820Hz
Earth Voltage
0-200V/ AC (40-500Hz)
Accuracy
± (1%rdg+2dgt)
Low Battery Indication
symbol appears on the display
Data Hold Indication
symbol appears on the display
Over Range Indication
"1" (MSD)
Power supply
6 x 1.5 V, IEC LR6
Safety complying with
EN 61010-1, EN 61557-1
EN 61557-5. EN 61326-1
Measurement category
CAT III 200V
Dimensions
205 x 90 x 55 mm
Weight
Approx. 550g


Scope of Supply:
1 pc Earth Resistance Tester 92720
3 pc Test leads (15m, 10m, 5m)
2 pc Auxiliary earth spikes
1 pc Simplified Test leads
1 pc Carrying Case
6 pc Batteries 1.5 V, IEC LR6
1 pc Instruction Manual
